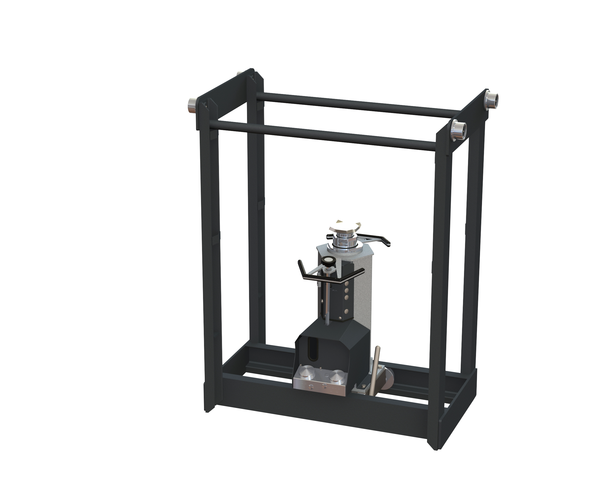

MPJ 16.5/1200 2S HA VP 454280

Detalles del producto / volumen de suministro

2-stage telescopic, rail-guided, suspended

Description:
Automatic axle and transmission jack
with pneumatic motor and fast control
in slim design specifically for dismantling assemblies
and lifting vehicles up to 16.5 t

Control:

• Unique synchronised telescopic lifting cylinder for quick load lifting with fast control
• Efficient fast control for UP and DOWN movement integrated as standard
• Precision, user-friendly foot control using compact and robust operating unit for quick lift and load lift
• Delicate and precision lowering of the pit jack with tried <(>&<)> tested system with integrated dead man's control
• Telescopic stages protected against corrosion thanks to the Venturi effect (separationof hydraulic oil and airflow)
• Integrated cover to protect against unintentional operation

Design:

• Suspended telescopic pit jack specifically for difficult floors in work pits, with custom-made carriage adapted specifically to theindividual work pit based on dimension sheet
• Precision-guided track rollers (flange guided)
• Secure jack holding brake in transverse direction across the work pit
• Integrated inspection window for checking oil quality and quantity of the pit jack
• Optimised removal of the dismantled units thanks to low construction height of the jack due to ideal arrangement of the lifting unit in the carriage
• Corrosion-resistant piston rods thanks to self-lubrication
• High-quality powder-coating protects against corrosive liquids and elevates quality look and feel on a lasting basis

Scope of delivery:

• Pit jack with hydro-pneumatic automatic control system
• Hanging carriage with four rollers for rails
• Standard support lugs 120 x 120 mm
• Operating instructions
• EC conformity certificate
• Colour: Jack base frame RAL 7040
  • Attachments and carriage RAL 7016
