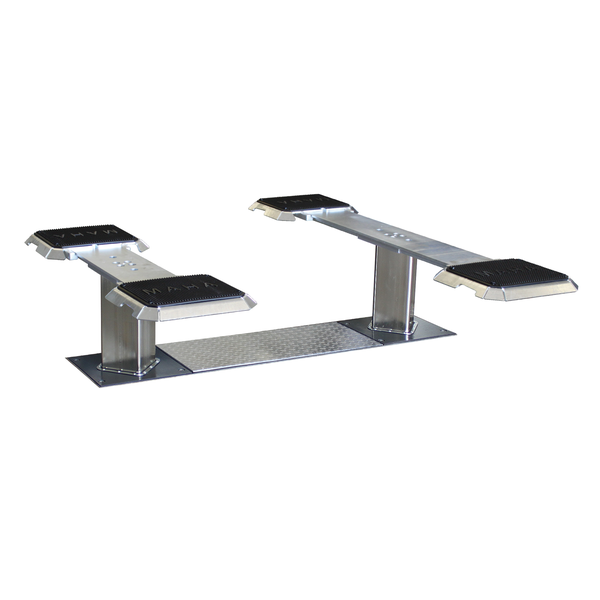

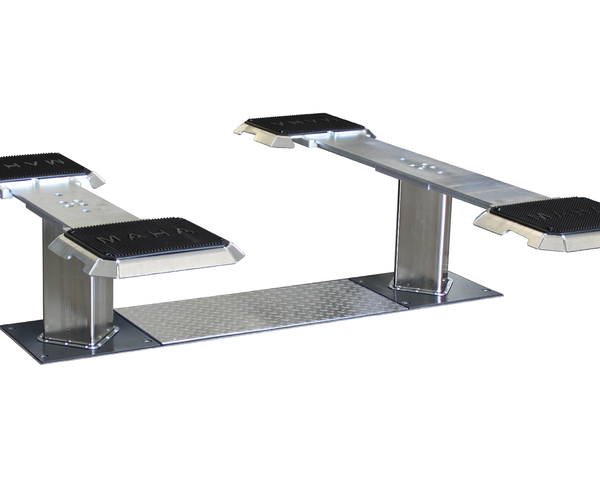

ZS SQUARE II 3.5 FT VP 252318

Detalles del producto / volumen de suministro

Description:
Two-post inground lift with flat head supports,
to pick up vehicles in the sill area.
Suitable for cars, pick-up points underneath the vehicle

Flat head support (FT H):

• Flat head extensions adaptable for different vehicle types, telescopic from 1400 - 2000 mm in standard
• Flexible, optional range of support plates in 'longer - wider - flatter' versions ensures perfect accommodation of all current and future vehicle models
• Large pick-up areas due to exchangeable support plate system cover the entire vehicle spectrum
• Easier, tyre-preserving drive-on thanks to all-round bevelled extensions combined with low construction height and rubber support plate (height no more than approx. 60 mm)
• Rubber support plate enables time-saving direct pick-up
• Optional flush-floor installation for easier passing over lift

SQUARE lift unit:

• Outstanding rigidity and optimum safety thanks to torsion-resistant square posts
• Low-noise operation due to very quiet motor in the installation box
• Optionally usable with mineral organic oil with high durability
• Electronic lift control with no-contact, wear-free limit switches and visual error display
• Very smooth running due to sliding, long-life special nickel coating on posts with robust, low-maintenance post guide
• Protected internal hydraulic safety cylinder guarantees lengthy service life
• Movable synchronisation and safety yoke for redundant operation (acc. to EN DIN 1493)
• High lifting/lowering speeds are guaranteed in a load-dependent range of 20 - 30 seconds
• Integrated, battery-operated emergency lowering
• Optimum workplace ergonomics thanks to optional, standard-independent control system via energy box or flush-mounted switching system

Scope of delivery:

• Flat head supports, hot-dip galvanised
• Lift unit with double cylinder and clamping system
• Wiring and mounting material
• Installation box/installation frame not included in delivery
• Emergency lowering cable for connection to switch box
• Control unit with 2 x 10 m control cable (oil flex cable)
• Lockable main switch
• Pinch point protection by CE stopinstead of foot guard
• Operating instructions
• CE/UKCA Declaration of conformity
